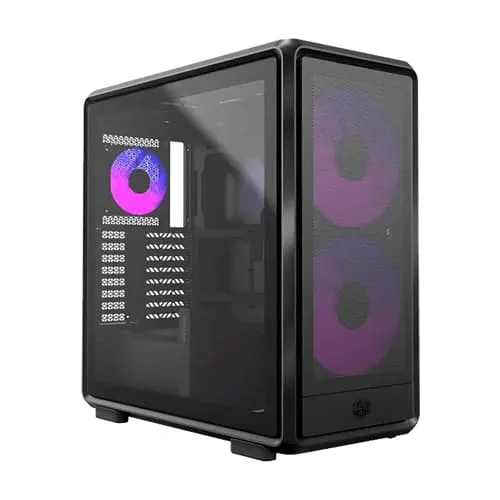

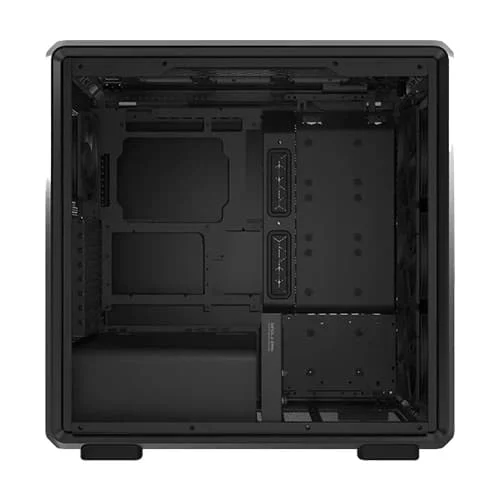

Cooler Master MasterFrame 600 Mesh ARGB Silver E-ATX Mid Tower Cabinet Case
Features:
MasterFrame 600 Mesh
The MasterFrame 600 Mesh is a premium open-frame mid-tower chassis built for high-performance hardware, extreme cooling, and total customization. Designed with FreeForm 2.0 in mind, it supports ATX to E-ATX motherboards and offers full access to modular design files, empowering users to build and evolve without limits.
FreeForm 2.0 Exo-structure
The exposed frame structure enhances chassis adaptability and provides flexible configuration options for various scenarios.
Versatile & Maker-Driven
Its open source design and interchangeable panels offer endless personalization possibilities, transforming your chassis into a unique expression of style.
Flexible Motherboard Support
Supports Mini-ITX to E-ATX motherboards, offering compatibility with a wide range of builds and configurations.
Note: Supports E-ATX* and SSI-CEB* Motherboards *(Conditional Support)
Extensive Cooling Support
Can house up to eleven fans and multiple radiator sizes (up to 420mm), ensuring superior thermal performance.
Tool-Free Panel Removal
Easily remove side panels and other components without tools for quick access and modifications during build or upgrades.
Included GPU support bracket
The included GPU support bracket prevents GPU sag and ensures stability during intense gaming or high-performance workloads, maintaining a clean and secure build.
Fan Support:
- Front: 3x 120mm, 3x 140mm, 2x 180mm, 2x 200mm
- Top: 3x 120mm, 2x 140mm, 2x 180mm , 1x 200mm
- Rear: 1x 120mm
- Side: 3x 120mm, 3x 140mm
Radiator Support:
- Front: 120 / 140 / 240 / 280 / 360 / 420 mm
- Top: 120 / 140 / 240 / 280 / 360 / 420 mm ((Up to 420mm if I/O module is moved to the front panel)
- Rear: 120 mm
- Side: 240 / 280 / 360 / 420 mm
Pre-installed Fans:
- Front: 2x SickleFlow 200 ARGB
- Top: N/A
- Rear: 1x SickleFlow 120 ARGB
Clearance – Graphics Card
L: 485 mm (incl. power connector), H: 190 mm (incl. power connector)
| Cabinet Size | MID-TOWER |
| Color | Silver |
| Material | SGCC Steel, Aluminum |
| Expansion Slots | 8 |
| Motherboard Size | SSI-CEB,E-ATX,ATX,M-ATX,M-ITX |
| Max CPU Cooler Height | 190mm |
| Max PSU Length | 235mm |
| Max Gpu Length | 485mm |
| Max 3.5″ HDD | 2 |
| Max 2.5″ SSD | 5 |
| Dust Filters | Top, Front, Bottom, Right Side |
| Pre Installed Fans | 3 |
| Max Fan Support | 10 |
| Radiator Support | 420mm,360mm,280mm,240mm,140mm,120mm |
| Front I/O Panel | USB 3.2 Gen 1 Type A,USB 3.2 Gen 2,Type C |
| Warranty | 2 Years |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
