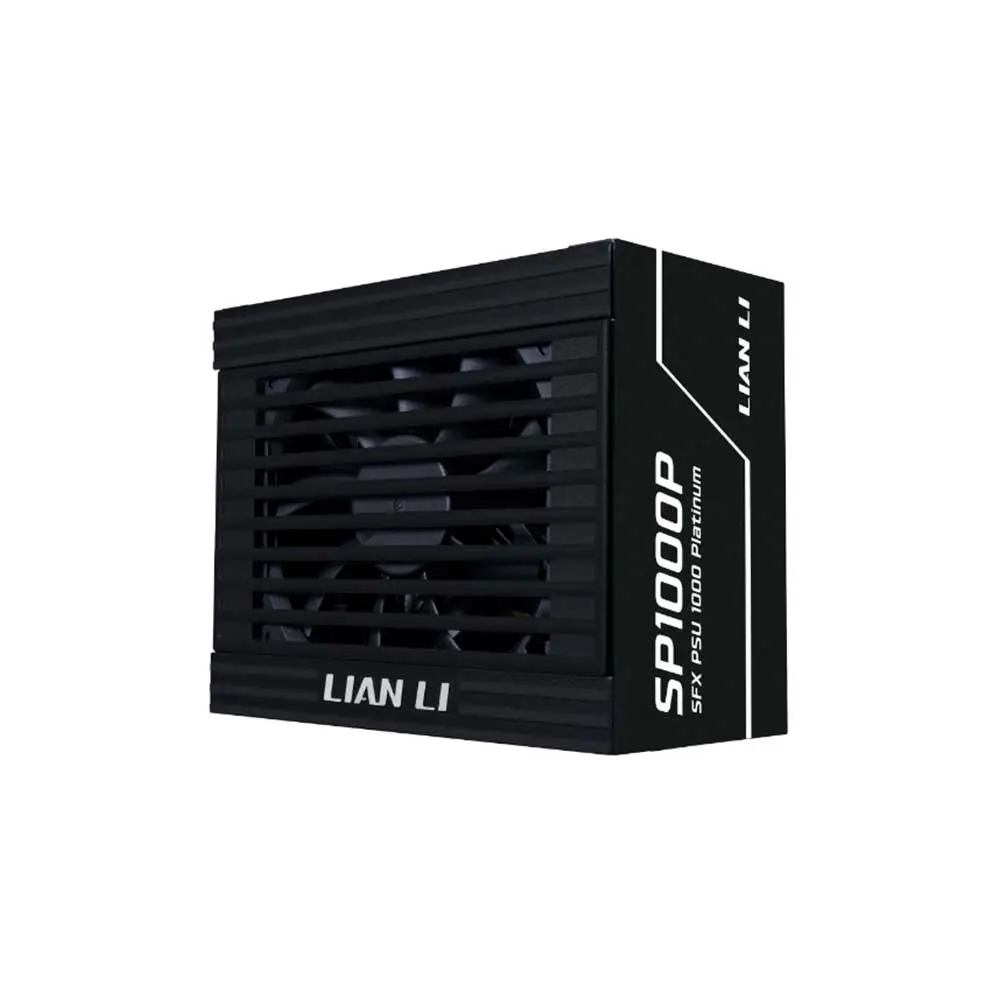

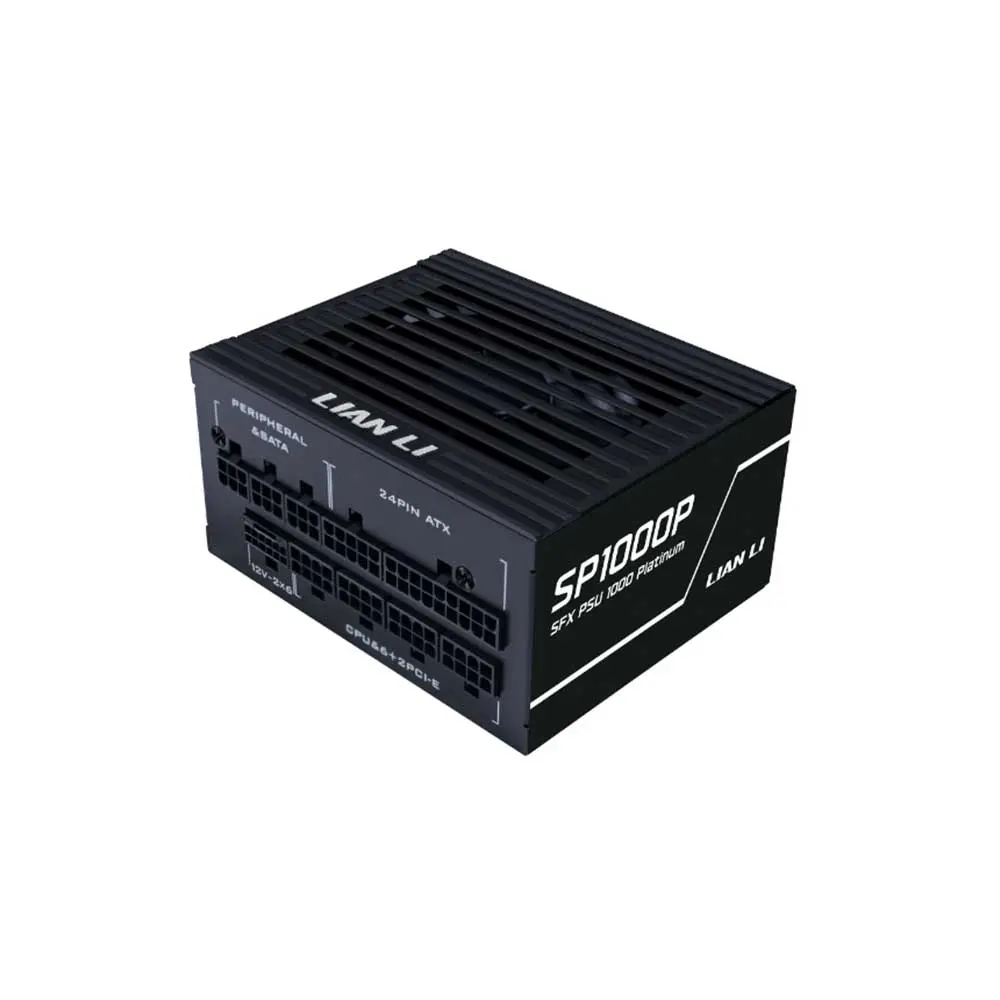

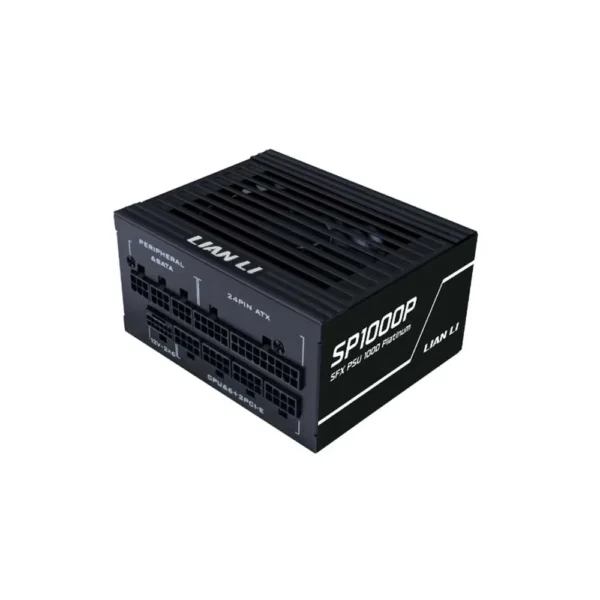

Lian Li SP Platinum SP1000P 1000 Watt Fully Modular Power Supply Black
- High-power SFX design for compact and performance builds.
- 80 PLUS Platinum certified for up to 92% efficiency at 50% load.
- ATX 3.1 ready with reinforced 12V-2×6 600 W cable for next-gen GPUs.
- Equipped with a 92 mm FDB smart fan for quiet, temperature-controlled cooling.
- Built with 100% Japanese Rubycon 105°C capacitors for long-term reliability.
- Full set of protection features including OPP, OVP, SCP, OTP, UVP, UCP.
- Fully-modular braided cables for easy routing and a refined build appearance.
- Optional SFX-to-ATX bracket included for wide case compatibility.
| Specifications | |
| Product Name | SP1000P |
| Model No. | SP1000P |
| Dimensions | (W)125 mm X (H)63.5 mm X (D)100 mm |
| DC Output Cable | Fully Modular |
| Color | Black |
| Material | SECC |
| ATX12V Version | ATX 3.1 |
| Efficiency Certification | 80 PLUS Platinum |
| Max. DC Output | 1000 W |
| Combine +3.3V & 5V | 100W |
| Combined +12V | 999.6W |
| Input Rating | 100–240Vac 50–60Hz 6–12A |
| PFC | Active PFC, PF > 0.95 under full load @ 115Vac, 60Hz |
| Protection | OPP/ NLP /OVP / SCP / UCP / OTP / UVP / SIP |
| Fan SPC | 92mm FDB Fan |
| Fan RPM | 2900RPM |
| Fanless Mode | Yes |
| Noise Level | 45dBA |
| Working Temperature | 0~40℃ |
| Warranty | 10 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
